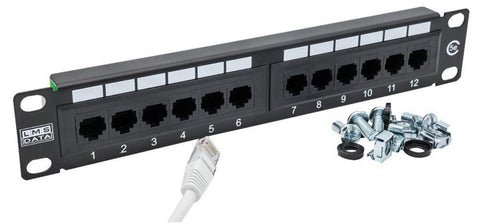

The LMS Data PPAN-12-10 is 12 Port certified CAT5e UTP Patch Panel which is designed as a SOHO (small office home office) 10-inch design. Being compact its design to fit in a range of 10-inch data cabinets found in homes and small offices.

Fully Gigabit Ethernet certified means its ideal for running legacy and advanced networking protocols to Gigabit Switches up up to 1000Mbps. Also ideal for telecom, VoIP, CCTV-IP and other Ethernet based standards.

Long-life, nickel plated female RJ45s, robust construction with colour-coded rear Krone(tm) KATT type IDC for both TIA-568A/B terminations.

Key Features:

• Certified CAT5e Performance for Gigabit Ethernet
• 10-inch SOHO Compact Design for 10-Inch Cabinets
• Popular Krone(tm) KATT Dual Purpose IDC Punchdown
• Removable Rear Cable Management Bar for Cable Anchoring
• Part of the Synthesis 25-Year Warranty Solution

Applications:

Home Offices, Branch Offices and CCTV Consolidation

Ideal for Gigabit Ethernet (1000Mbps) Data Networks

Create fault tolerant LANs by simply patching ports

Product Code:

Part Number: PPAN-12-10

EAN: 8400800020680

Weight: 0.3Kg approx

Technical Specifications:

Port Count                            12 Ports UTP

Dimensions                           1U 10-Inch Design Format

Conformance                        TIA-EIA-568A/568B Coded IDC

Performance                         10/100/1000Mbps Gigabit Compliance

RJ45/IDC Connects               Nickel and Phosphor Bronze

Port Identification                  Numbered and Bespoke ID Marker

Fixings                                  Supplied M6 Nuts and Bolts

* Specifications and product design are subject to change. E&OE.

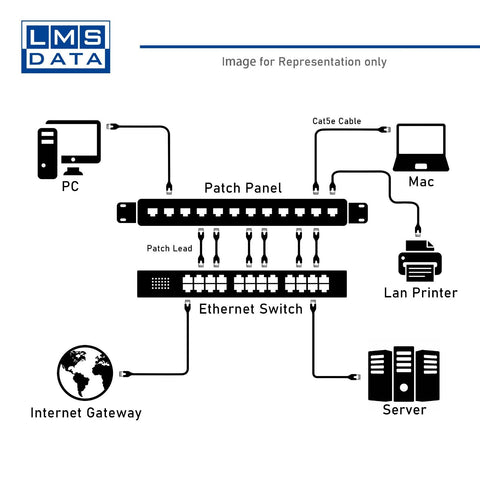

What's a Patch Panel? Designed in such a way that smaller length, separate patch leads can be plugged from an installed Switch to the patch panel. That way, if a Ethernet port fails, its just simply can be 'patched' to another port. Ideal for when you need to re-establish LAN links and to wall data outlets.
